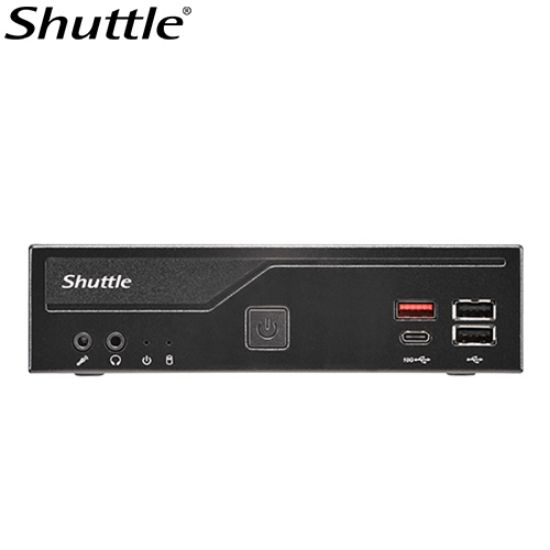

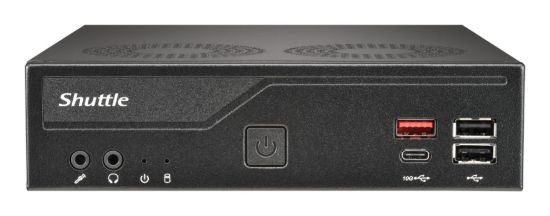

Shuttle DH810 Slim Mini PC 1.3L chassis - Intel® Core™ Ultra 200 serie ,2 x DDR5 SODIMM slots,48GB, 2xLAN (1G & 2.5G), 2xRS232, HDMI, 2xDP, 120W, Vesa

Manufacturer: Shuttle
Availability: 6 in stock
Shuttle DH810 Slim Mini PC 1.3L chassis - Intel® Core™ Ultra 200 serie ,2 x DDR5 SODIMM slots,48GB, 2xLAN (1G & 2.5G), 2xRS232, HDMI, 2xDP, 120W, Vesa
Old price: $711.69
$732.02
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
The Shuttle XPC slim Barebone DH810 is a robust 1.3-litre PC designed for powerful Intel Core Ultra 200 desktop processors (LGA1851 socket, “Arrow Lake-S”) with an integrated AI accelerator (NPU). Three independent display outputs – HDMI 2.1 supporting up to 8K/60 Hz, DisplayPort 1.4a, and USB-C with DisplayPort/USB4 – deliver stunning visuals for digital signage, entertainment, or office environments. Dual Intel LAN (2.5G + 1G), eight USB ports, two COM ports, and versatile storage options (M.2 PCIe 4.0 x4/SATA and 2.5" bay) provide maximum flexibility. Its slim metal chassis with VESA mount ensures reliable 24/7 operation at ambient temperatures up to 50 °C, making it ideal for demanding applications such as AI workloads, digital signage, POS/POI, gaming, healthcare, industry, and office.
Products specifications
Attribute nameAttribute value
Built-in processorNo
Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory96 GB
Supported memory clock speeds5600 MHz
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Memory voltage1.1 V
ECCNo
Non-ECCYes
Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5"
SSD form factorM.2
Storage drive interfaceM.2, PCI Express, Serial ATA
NVMeYes
Number of storage drives supported2
On-board graphics cardYes
Built-in speaker(s)No
Ethernet LANYes
Wi-FiNo
LAN controllerIntel® I219, Intel I226
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB4 Gen 2x2 ports quantity1
HDMI ports quantity1
HDMI version2.1
DisplayPorts quantity1
DisplayPort version1.4a
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2
Serial ports quantity2
DC-in jackYes
Chassis type1.35L sized PC
Product colourBlack
Cooling typeActive
LED indicatorsHDD, Power
Housing materialMetal
Cable lock slotYes
Cable lock slot typeKensington
VESA mountingYes
Product typeMini PC barebone
Processor socketLGA 1851 (Socket V1)
Number of processors supported1
BIOS typeEFI AMI
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Audio output channels2.0 channels
Audio chipRealtek ALC888S
Compliance certificatesBSMI, CB, CE, ETL, Federal Communications Commission (FCC), RCM, RoHS, VCCI
Harmonized System (HS) code84733080
Windows operating systems supportedWindows 11
Linux operating systems supportedYes
Sustainability certificatesENERGY STAR, ErP
Power supply typeExternal AC adapter
Power supply120 W
Number of power supply units1
AC input voltage100 - 240 V
AC input frequency50/60 Hz
AC adapter output voltage19 V
AC adapter output current6.32 A
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)10 - 90%
Width165 mm
Depth190 mm
Height43 mm
Weight1.3 kg
Package weight2.1 kg
Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes
