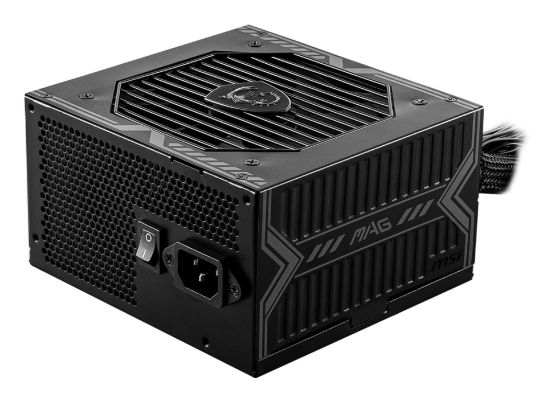

MSI MAG A650BN 650W Power Supply, 80 PLUS Bronze, up to 85% Efficiency, Active PFC, OCP / OVP / OPP / OTP / SCP

MSI MAG A650BN 650W Power Supply, 80 PLUS Bronze, up to 85% Efficiency, Active PFC, OCP / OVP / OPP / OTP / SCP
Manufacturer: MSI
Availability: 29 in stock
Old price: $96.98
$87.88
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
MAG A650BN provides players with a safe, reliable, and efficient entry-level power supply option. Its core features include 80 PLUS Bronze certification, DC to DC circuit design, 12V single rail, active PFC, and low-noise fan. The MAG A650BN will be one of the best choices for players who are just getting started with looking into DIY computers. After installation, gamers can immediately enjoy a reliable performance experience without additional settings.

80 PLUS BRONZE CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.

120MM LOW NOISE FAN
The fan’s sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.

DC TO DC CIRCUIT DESIGN
Adopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power.

COMPREHENSIVE CIRCUIT PROTECTION
Supports OCP, OVP, SCP, OPP, OTP protection
mechanisms and provides comprehensive protection.

5-YEAR LIMITED WARRANTY
The MAG A650BN is proudly backed by a 5-year limited warranty, guaranteeing long term reliable operation.

Products specifications

Attribute nameAttribute value
Total power650 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Maximum input current (@110V)10 A
Maximum input current (@220V)5 A
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)110 W
Combined power (+12V)648 W
Combined power (+5V)110 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)12.5 W
Max output current (+3.3V)20 A
Max output current (+12V)54 A
Max output current (+5V)20 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)20 A
Efficiency85%
Power protection featuresOver current, Over power, Over voltage, Short circuit
Motherboard power connector20+4 pin ATX
Motherboard power cable length60 cm
Number of SATA power connectors5
Peripheral (Molex) power connectors (4-pin)2
EPS power connector (8-pin)No
EPS power connector (4+4 pin)Yes
PCI Express power connectors (6+2 pin)2
CPU power connector (4+4 pin)Yes
ATX Power connector (24-pin)No
ATX power connector (20+4 pin)Yes
Floppy disk drive connectorNo
PCI Express connectorYes
Cabling typeNon-Modular
80 PLUS certification80 PLUS Bronze
PurposePC
Power supply unit (PSU) form factorATX
Product colourBlack
Cooling typeActive
Fan diameter12 cm
Number of fans1 fan(s)
IlluminationNo
On/off switchYes
Width150 mm
Depth140 mm
Height86 mm
Harmonized System (HS) code84733020
