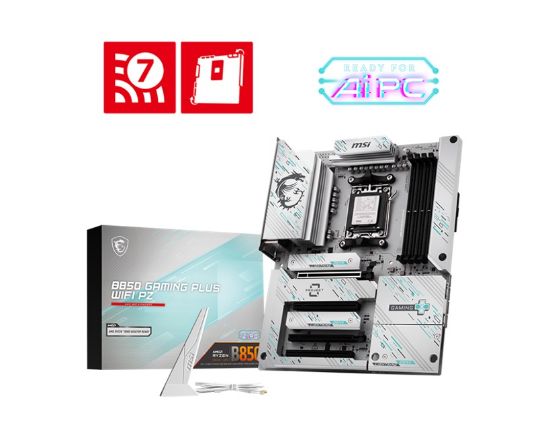

Picture of MSI B850 GAMING PLUS WIFI PZ, AMD Ryzen, 4x DDR5 256GB, 4x PCIe x16 slot, 3x M.2, 4x SATA 6G, 8x USB 2.0, Wi-Fi 7, Bluetooth 5.4

MSI B850 GAMING PLUS WIFI PZ, AMD Ryzen, 4x DDR5 256GB, 4x PCIe x16 slot, 3x M.2, 4x SATA 6G, 8x USB 2.0, Wi-Fi 7, Bluetooth 5.4

Manufacturer: MSI
Availability: 4 in stock
MSI B850 GAMING PLUS WIFI PZ, AMD Ryzen, 4x DDR5 256GB, 4x PCIe x16 slot, 3x M.2, 4x SATA 6G, 8x USB 2.0, Wi-Fi 7, Bluetooth 5.4
Old price: $398.74
$386.66
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
B850 GAMING PLUS WIFI PZ

The B850 GAMING PLUS WIFI PZ is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

Back-Connect Design

The B850 GAMING PLUS WIFI PZ features a back-connect design, which relocates the motherboard power, CPU power, fan pins, SATA, and other interfaces to the back of the motherboard. This allows for simpler cable management, while also providing a cleaner and more aesthetically pleasing appearance for the system.

12+2+1 Duet Rail Power System

Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, the B850 GAMING PLUS WIFI PZ is ready to sustain heavy gaming loadings.

Cooling Overview

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Enlarged Chipset Heatsink

The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

Products specifications
Attribute nameAttribute value
Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor socketsSocket AM5
Maximum internal memory supported by processor256 GB
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds4800,5600,6400,8200 MHz
Supported memory clock speed (max)8200 MHz
Maximum internal memory256 GB
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, Micro SATA III
Number of HDDs supported4
Number of storage drives supported7
RAID supportYes
RAID levels0, 1, 5, 10
On-board graphics cardNo
USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors4
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
Total number of SATA connectors4
S/PDIF out connectorYes
CPU fan connectorYes
Number of CPU fan connectors4
Number of water pump connectors1
RGB LED pin headerYes
Number of RGB LED pin headers3
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
DisplayPorts quantity1
DisplayPort version1.2
Ethernet LANYes
Ethernet interface type5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
BluetoothYes
Bluetooth version5.4
Motherboard chipsetAMD B850
Audio chipRealtek ALC897
Audio output channels7.1 channels
Product colourBlack
Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Windows operating systems supportedWindows 11 x64
PCI Express x16 (Gen 3.x) slots2
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots3
1st M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size22110
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
BIOS typeUEFI AMI
ACPI version6.5
System Management BIOS (SMBIOS) version3.7
Width243.8 mm
Depth304.8 mm
