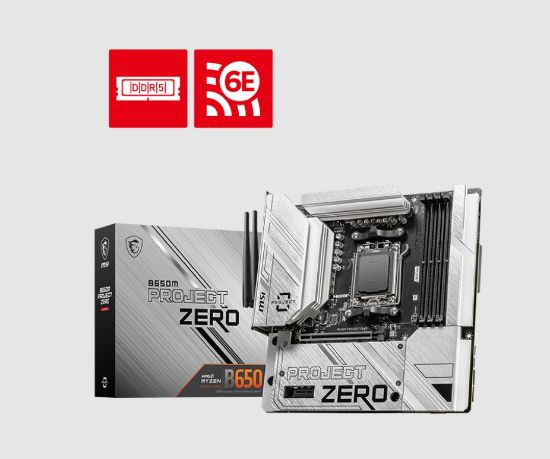

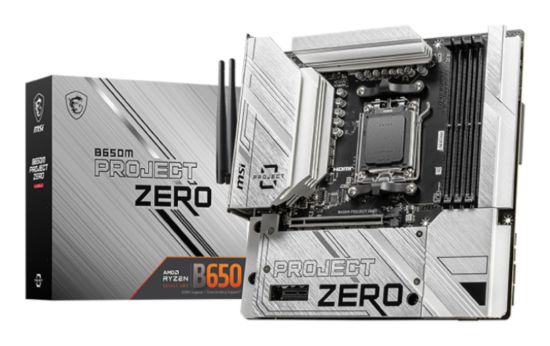

Picture of MSI B650M PROJECT ZERO Motherboard, AMD B650, 4x DDR5 128GB, 1x HDMI, 2x M.2, USB 3.2 Type A x9

MSI B650M PROJECT ZERO Motherboard, AMD B650, 4x DDR5 128GB, 1x HDMI, 2x M.2, USB 3.2 Type A x9

Manufacturer: MSI
Availability: 28 in stock
MSI B650M PROJECT ZERO Motherboard, AMD B650, 4x DDR5 128GB, 1x HDMI, 2x M.2, USB 3.2 Type A x9
$417.53
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
ABSOLUTE SIMPLICITY
B650M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
Products specifications
Attribute nameAttribute value
Processor manufacturerAMD
Processor socketSocket AM5
Supported processor socketsSocket AM5
Maximum internal memory supported by processor128 GB
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7400,7600 MHz
Supported memory clock speed (max)7600 MHz
Maximum internal memory128 GB
Unbuffered memoryYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, PCI Express
RAID supportYes
RAID levels0, 5, 10
Parallel processing technology supportNot supported
On-board graphics cardNo
USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
Front panel audio connectorYes
Front panel connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
TPM connectorYes
RGB LED pin headerYes
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 3.2 Gen 2x2 Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
DisplayPorts quantity1
DisplayPort version1.4
S/PDIF out portYes
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
BluetoothYes
Bluetooth version5.3
Motherboard chipsetAMD B650
Audio chipRealtek ALC897
Audio output channels7.1 channels
Product colourWhite
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Windows operating systems supportedWindows 10 x64, Windows 11 x64
PCI Express x1 slots1
PCI Express x16 slots1
Number of M.2 (M) slots2
BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version6.4
System Management BIOS (SMBIOS) version3.5
Width243.8 mm
Depth243.8 mm
Cables includedSATA
