  • Lenovo ThinkCentre M70S G5 SFF -12U30016AU- Intel i5-14400 / 16GB 4800MHz / 512GB SSD / WIFI+BT / W11P / 3-3-3

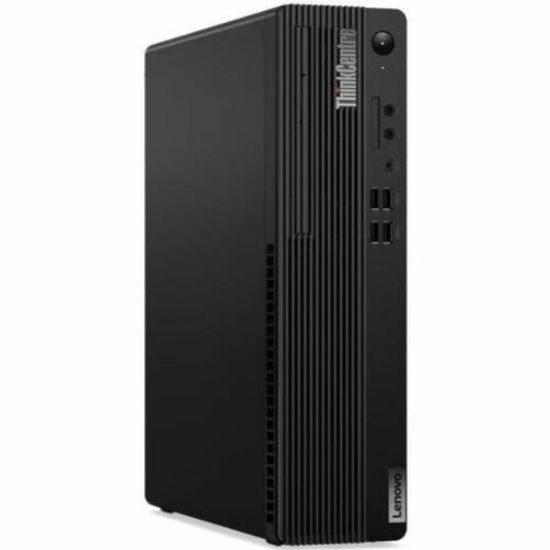

Picture of Lenovo ThinkCentre M70S G5 SFF -12U30016AU- Intel i5-14400 / 16GB 4800MHz / 512GB SSD / WIFI+BT / W11P / 3-3-3

Sorry - this product is no longer available

Lenovo ThinkCentre M70S G5 SFF -12U30016AU- Intel i5-14400 / 16GB 4800MHz / 512GB SSD / WIFI+BT / W11P / 3-3-3

Manufacturer: LENOVO
Lenovo ThinkCentre M70S G5 SFF -12U30016AU- Intel i5-14400 / 16GB 4800MHz / 512GB SSD / WIFI+BT / W11P / 3-3-3
$1,585.87
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
Whether you run a small business or the IT department of a massive enterprise, you can have confidence in these desktop PCs' reliability, ease of use and productivity - not to mention their green appeal. Choose from multiple form factors, then let these tools of business do the rest
  • Intel Core i5-14400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB
  • Intel Core i5-14400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB
  • 2x 8GB UDIMM DDR5-4800, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
  • 2x 8GB UDIMM DDR5-4800, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
  • 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm)
  • 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm)
  • 4x USB-A (Hi-Speed USB / USB 2.0) 1x HDMI 2.1 TMDS 1x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45)
  • 4x USB-A (Hi-Speed USB / USB 2.0) 1x HDMI 2.1 TMDS 1x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45)
  • Windows 11 Pro, English
  • Windows 11 Pro, English
Products specifications
Attribute nameAttribute value
Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generationIntel® Core™ i5 (14th gen)
Processor modeli5-14400
Processor cores10
Processor threads16
Processor boost frequency4.7 GHz
Performance cores6
Efficient cores4
Performance-core Max Turbo Frequency4.7 GHz
Efficient-core Max Turbo Frequency3.5 GHz
Performance-core base frequency2.5 GHz
Efficient-core base frequency1.8 GHz
Processor cache20 MB
Processor cache typeSmart Cache
Processor base power65 W
Maximum turbo power148 W
Internal memory16 GB
Maximum internal memory64 GB
Internal memory typeDDR5-SDRAM
Memory layout (slots x size)2 x 8 GB
Memory slots2x DIMM
Memory clock speed5600 MHz
Memory channelsDual-channel
Total storage capacity512 GB
Storage mediaSSD
Optical drive typeNo
Number of storage drives installed1
Total SSDs capacity512 GB
Number of SSDs installed1
SSD capacity512 GB
SSD interfacePCI Express 4.0
NVMeYes
SSD form factorM.2
Card reader integratedNo
Discrete graphics cardNo
On-board graphics cardYes
Discrete graphics card modelNot available
On-board GPU manufacturerIntel
On-board graphics card familyIntel® UHD Graphics
On-board graphics card modelIntel UHD Graphics 730
Ethernet LANYes
Ethernet LAN data rates100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standardsWi-Fi 6 (802.11ax)
WLAN controller manufacturerIntel
WLAN controller modelIntel Wi-Fi 6 AX201
BluetoothYes
Bluetooth version5.2
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
HDMI ports quantity1
HDMI version2.1
DisplayPorts quantity1
DisplayPort version1.4a
Ethernet LAN (RJ-45) ports1
Microphone inYes
Combo headphone/mic portYes
Chassis typeSFF
Colour nameBlack
Volume8.2 L
Cable lock slotYes
Cable lock slot typeKensington
Product colourBlack
Motherboard chipsetIntel Q670
Audio chipRealtek ALC623-CG
Audio systemHigh Definition Audio
Built-in speaker(s)Yes
Number of speakers1
Password protectionYes
Password protection typeBIOS, HDD, Power on, Supervisor
Trusted Platform Module (TPM)Yes
Product typePC
Operating system installedWindows 11 Pro
Operating system architecture64-bit
Operating system languageEnglish
Power supply260 W
Power supply input voltage100 - 240 V
Power supply input frequency50/60 Hz
Compliance certificatesRoHS
CertificationErP Lot 3 GREENGUARD RoHS compliant TCO Certified 9.0 MIL-STD-810H military test passed
Sustainability complianceYes
Sustainability certificatesErP, TCO
Width92.5 mm
Depth297.7 mm
Height339.5 mm
Weight5.3 kg
Package width195 mm
Package depth395 mm
Package height530 mm
Package weight7.6 kg
Mouse includedYes
Mouse connectivityWired
Keyboard includedYes
Keyboard connectivityWired
Display includedNo
