LDR Outdoor Smart Solar Box, IP55,*2.4 inch Screen*,Waterproof,Solar Power Input( <100VD),2 PoE Port Up to 90W, 6 PoE Port Up to 30W, L2 Manage, White
LDR Outdoor Smart Solar Box, IP55,*2.4 inch Screen*,Waterproof,Solar Power Input( <100VD),2 PoE Port Up to 90W, 6 PoE Port Up to 30W, L2 Manage, White
LDR Smart Solar Box, IP55, *NoTouch Screen*
SKU: RCLDR-DB-QU3082SPG
Description:

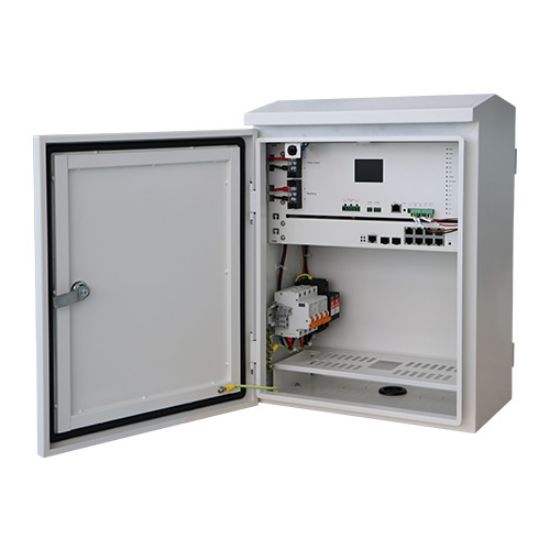

RCLDR-DB-QU3082SPG is an outdoor smart solar powered box, powered by solar battery, with MPPT controller, PoE switch, circuit-breaker, surge protector inside.
It can be applied for surveillance monitoring, forest monitoring, etc
Data Sheet:
Click Here
User Manual:
Click Here
Software Operation Guide:
Click Here
Software Installation:
Click Here
Smart Solar Box Operation :
Click Here
Key Features
• BYO: * Need to buy your own battery* - DC 12V lead-acid or Lithium Battery - *Customer Provide*
• BYO: * Need to buy your own solar panel* - Solar power input, input <100VDC;
• Load Capacity : 70kg
• Provide DC 3 channel power output, can remotely control, detect the output voltage and current;
• Supports 2 port PoE power each up to 90W, 6 port PoE power each up to 30W;
• Network Switch: 8*/10/100/1000M Base-TX 30W PoE, 2* 1000M SFP, unmanaged
• Supports L2 management, such as QoS, VLAN, MSTP, Multi-broadcast, ports management and PoE management;
• With No Touch Screen, 2.4 inch, resolution ratio 480*800
• With MPPT controller, connected the solar battery and charge the storage battery ;
• The box adopts waterproof, anti-rust treatment, suitable for long time outdoor use.
• With software platform, can check and control remotely.
• Dimension(H×W×D): 500mm×380mm×220mm
• Net weight: 15kg
