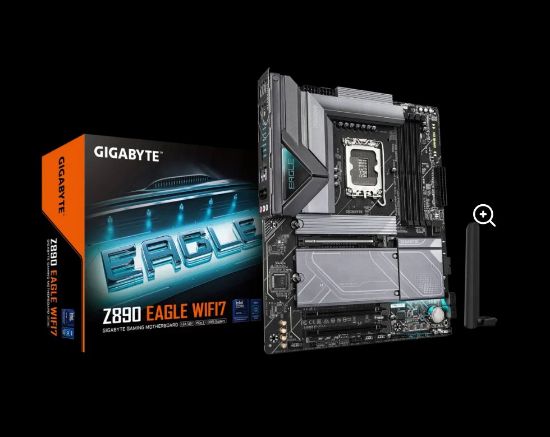

Gigabyte Z890 EAGLE WIFI7 Intel LGA 1851 ATX Motherboard, 4x DDR5 ~256GB, 3x PCI-E x16, 4x M.2, 4x SATA, 5x USB 3.2, 1x USB-C, 4x USB 2.0

Gigabyte Z890 EAGLE WIFI7 Intel LGA 1851 ATX Motherboard, 4x DDR5 ~256GB, 3x PCI-E x16, 4x M.2, 4x SATA, 5x USB 3.2, 1x USB-C, 4x USB 2.0
Manufacturer: Gigabyte
Availability: Out of stock
Old price: $402.05
$375.05
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Products specifications

Attribute nameAttribute value
Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)
Compatible processor seriesIntel Core Ultra (Series 2)
Supported processor socketsLGA 1851
Maximum internal memory supported by processor256 GB
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8266,8400,8600 MHz
Supported memory clock speed (max)8800 MHz
Maximum internal memory256 GB
Supported memory module capacities1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported8
Number of storage drives supported4
RAID supportYes
RAID levels0, 1, 5, 10
On-board graphics cardNo
DirectX version12.0
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
Total number of SATA connectors4
ATX Power connector (24-pin)Yes
EPS power connector (8-pin)Yes
TPM connectorYes
12V power connectorYes
RGB LED pin headerYes
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
DisplayPorts quantity2
Microphone inYes
S/PDIF out portYes
Thunderbolt ports quantity2
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standardsWi-Fi 7 (802.11be)
WLAN controller modelMediaTek MT7925
BluetoothYes
Bluetooth version5.4
Motherboard chipsetIntel Z890
Audio chipRealtek ALC1220
Audio output channels7.1 channels
Product colourBlack
PC health monitoringFan, Temperature, Voltage
Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Windows operating systems supportedWindows 11 x64
PCI Express x16 (Gen 4.x) slots2
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots4
BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Clear CMOS jumperYes
Clear CMOS buttonYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Country of originChina
Products per shipping (inner) case1 pc(s)
Battery weight3 g
Lithium weight per battery0.07 g
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Package width335 mm
Package depth270 mm
Package height80 mm
Package weight2.02 kg
Width305 mm
Depth244 mm
Height35 mm
Batteries includedYes
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Weight1.78 kg
Warranty period3 year(s)
