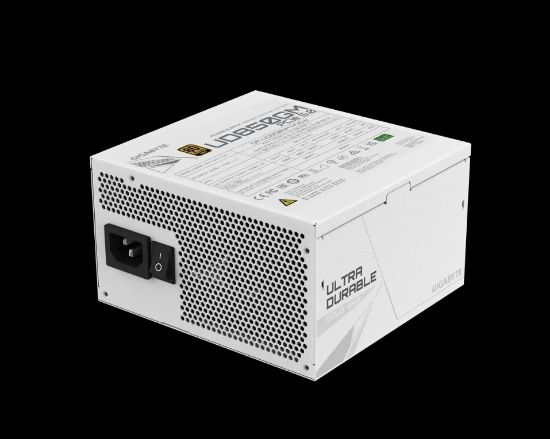

Picture of Gigabyte UD850GM PG5 850W ICE ATX PSU Power Supply 80 PLUS GOLD Fan Type 120mm Hydraulic Bearing(HYB)fan >100,000 hours

Gigabyte UD850GM PG5 850W ICE ATX PSU Power Supply 80 PLUS GOLD Fan Type 120mm Hydraulic Bearing(HYB)fan >100,000 hours

Manufacturer: Gigabyte
Availability: 11 in stock
Gigabyte UD850GM PG5 850W ICE ATX PSU Power Supply 80 PLUS GOLD Fan Type 120mm Hydraulic Bearing(HYB)fan >100,000 hours
Old price: $189.41
$189.40
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
Products specifications
Attribute nameAttribute value
Total power850 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current12 - 6.5 A
Power factor0.9
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)105 W
Combined power (+12V)850 W
Combined power (+5V)105 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)20 A
Max output current (+12V)70.8 A
Max output current (+5V)20 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Hold time16 ms
Efficiency90%
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector20+4 pin ATX
Motherboard power cable length61 cm
Number of SATA power connectors8
SATA power cable length150,600 mm
Peripheral (Molex) power connectors (4-pin)3
Peripheral (Molex) power cable length150,500 mm
PCI Express power connectors (6+2 pin)4
PCI Express power connectors (12+4 pin)1
PCI Express power connectors (12+4 pin) cable length700 mm
PCI Express power cable length60 cm
CPU power connector (4+4 pin)Yes
CPU power cable length65 cm
Floppy drive power connector1
PCI Express connectorYes
Number of EPS connectors2
Cabling typeFully-Modular
80 PLUS certification80 PLUS Gold
PurposePC
Power supply unit (PSU) form factorATX
ATX version3.1
Bearing technologyHYB
Mean time between failures (MTBF)100000 h
Product colourWhite
Cooling typeActive
Fan diameter12 cm
Number of fans1 fan(s)
On/off switchYes
Width150 mm
Depth140 mm
Height86 mm
Weight2.4 kg
Package width618 mm
Package depth269 mm
Package height211 mm
Package weight2.56 kg
Package typeBox
Warranty period10 year(s)
