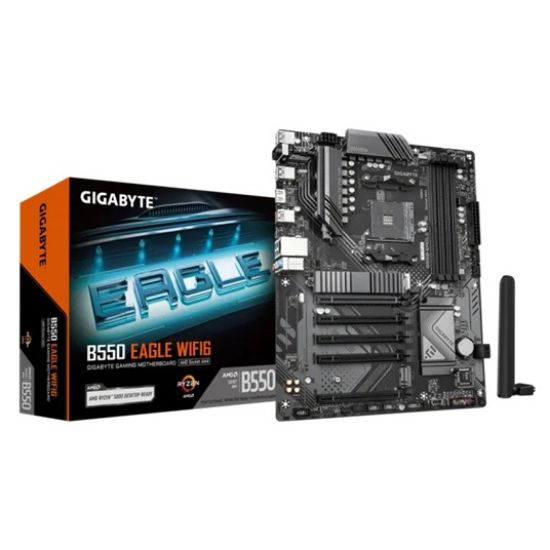

B550 EAGLE WIFI6 AMD ATX motherboard with AM4 support, Ryzen 3000–5000 CPUs, DDR4 up to 128GB, PCIe 4.0, dual M.2, Wi-Fi 6, Bluetooth 5.3 HDMI 2.1

B550 EAGLE WIFI6 AMD ATX motherboard with AM4 support, Ryzen 3000–5000 CPUs, DDR4 up to 128GB, PCIe 4.0, dual M.2, Wi-Fi 6, Bluetooth 5.3, HDMI 2.1 High-performance ATX motherboard powered by the AMD B550 chipset, designed for AMD Ryzen™ processors and modern connectivity. Key Features: AMD B550, ATX • Socket / CPU Support: AM4 •Ryzen 3000, 3000G, 4000G, 5000, 5000G • Chipset: AMD B550 • Memory: • 4× DDR4 DIMM, up to 128 GB • Dual-channel, 2133–3200 MT/s • XMP support, ECC & Non-ECC (unbuffered) •Integrated Graphics: • AMD Radeon Graphics (CPU-dependent) • 1× HDMI 2.1, up to 4K@60Hz •Max shared memory: 16 GB •Expansion Slots: •1× PCIe x16 •PCIe 4.0 (Ryzen 3000/5000) •PCIe 3.0 (G-Series) •4× PCIe 3.0 x1 • Storage: • 2× M.2 (PCIe 4.0/3.0, CPU-dependent) • 4× SATA 6Gb/s • RAID 0 / 1 / 10 (NVMe & SATA) •Networking: •Realtek Gigabit LAN •Wi-Fi 6, Bluetooth 5.3 •Audio: • Realtek HD Audio, up to 7.1-channel • USB: •USB-C (rear & header) •USB 3.2 Gen 2 / Gen 1 •USB 2.0 • Internal Headers: • 24-pin ATX, 8-pin CPU power • CPU fan + pump header, 3× system fan •RGB & ARGB headers • TPM header, Clear CMOS jumper •Back Panel I/O: •HDMI •USB-C, USB 3.2, USB 2.0 •RJ-45 LAN • Audio jacks •Q-Flash Plus button •BIOS: •AMI UEFI, 128 Mbit flash • Q-Flash & Q-Flash Plus •OS Support: Windows 10 / 11 (64-bit) • Form Factor: ATX – 30.5 × 24.4 cm
