Sorry - this product is no longer available

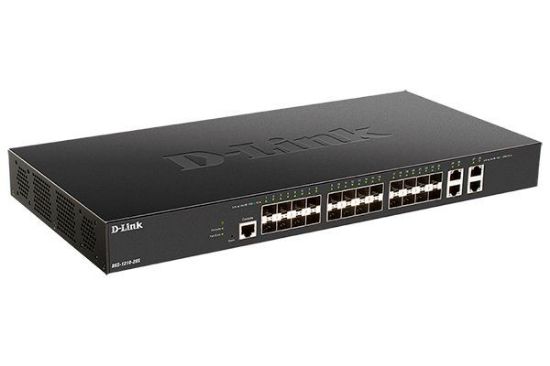

D-Link DXS-1210, 28-Port Smart Managed Switch with 24-port (10G) Base-X SFP+ and 4 (10G) Base-T Ports

Manufacturer: D-LINK

$4,240.16

Qty:

The D-Link DXS-1210 Series 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10 Gigabit switch series capable of servicing a range of network needs in any business. Supporting 10GBASE-T/SFP+ combo ports, this series provides connection flexibility across a network allowing easier network integration. With high performance and low latency, the DXS-1210 Series fulfills the needs for virtualization, cloud services, and server-to-server applications, making it perfect for Small-to-Medium-Business (SMB) customers.

RJ-45 Ports: 4
RJ-45 Speeds: 10G
Combo Ports (RJ-45 + SFP): 24-port (10G) Base-X SFP+ and 4 (10G) Base-T Ports
SFP (Small Form-Factor Pluggable) Ports : 24
SFP Speeds: 10G
PoE++ (60w) or higher available?: No
Number of PoE Ports: 0
Extended PoE?: No
Capacity in Millions of Packets per Second (mpps): Maximum Forwarding Rate: 416.64
Switching Capacity in Gigabits per Second (Gbps): 560
Web-based GUI: Yes
Redundant Power Supply: No
19" Rack Mountable: Yes
DIN-Rail Mountable: No
Stacking Capacity (Physical): No
Stacking Capacity (Virtual): Yes
IPv4 Routing: Yes
IPv6 Routing: Yes
DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes
Ruggedized: No
Operating Temperature: -5 to 50C
Unit dimensions: 441 x 209.5 x 44 mm
Warranty Licence: LTD Life

Products specifications

Attribute name	Attribute value
Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity	4
SFP+ module slots quantity	24
Console port	RJ-45
Networking standards	IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
10G support	Yes
Cable types supported	Cat6, Cat6a, Cat7, Cat6, Cat6a, Cat7
Port mirroring	Yes, Yes, Yes
Flow control support	Yes, Yes, Yes
Link aggregation	Yes, Yes, Yes
Auto MDI/MDI-X	Yes, Yes, Yes
Spanning tree protocol	Yes, Yes, Yes
VLAN support	Yes, Yes, Yes
Number of VLANs	4094, 4094, 4094
Switching capacity	560 Gbit/s, 560 Gbit/s, 560 Gbit/s
Throughput	416.64 Mpps, 416.64 Mpps, 416.64 Mpps
MAC address table	32000 entries, 32000 entries, 32000 entries
Store-and-forward	Yes, Yes, Yes
Jumbo frames support	Yes, Yes, Yes
Jumbo frames	9000, 9000, 9000
Access Control List (ACL)	Yes, Yes, Yes
Access Control List (ACL) rules	256, 256, 256
IGMP snooping	Yes, Yes, Yes
Management protocols	SNMP v1/v2c/v3, SNMP v1/v2c/v3, SNMP v1/v2c/v3
GARP VLAN Registration Protocol (GVRP)	Yes, Yes, Yes
Rack mounting	Yes, Yes, Yes
Stackable	No, No, No
Form factor	1U, 1U, 1U
Product colour	Black, Black, Black
LED indicators	Activity, Link, Speed, Activity, Link, Speed, Activity, Link, Speed
Number of fans	2 fan(s), 2 fan(s), 2 fan(s)
AC input voltage	100 - 240 V, 100 - 240 V, 100 - 240 V
Power consumption (max)	85.7 W, 85.7 W, 85.7 W
Power over Ethernet (PoE)	No, No, No
Operating temperature (T-T)	-5 - 50 Â°C, -5 - 50 Â°C, -5 - 50 Â°C
Storage temperature (T-T)	-20 - 70 Â°C, -20 - 70 Â°C, -20 - 70 Â°C
Operating relative humidity (H-H)	0 - 95%, 0 - 95%, 0 - 95%
Storage relative humidity (H-H)	0 - 95%, 0 - 95%, 0 - 95%
Width	441 mm, 441 mm, 441 mm
Depth	209.5 mm, 209.5 mm, 209.5 mm
Height	44 mm, 44 mm, 44 mm
Weight	3.27 kg, 3.27 kg, 3.27 kg
Manual	Yes, Yes, Yes
Certification	CE Class A FCC Class A VCCI Class A IC BSMI, CE Class A FCC Class A VCCI Class A IC BSMI, CE Class A FCC Class A VCCI Class A IC BSMI
Harmonized System (HS) code	85176990, 85176990, 85176990
