  • D-Link DIS-M100G, 2-Port Industrial Base-T to SFP Media Converter with 1BASE-T and 1 SFP Port

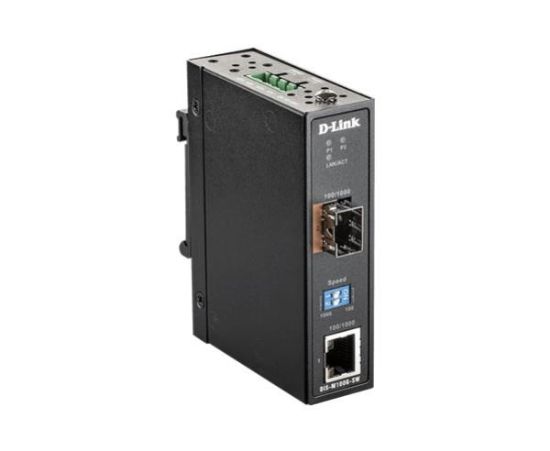

Picture of D-Link DIS-M100G, 2-Port Industrial Base-T to SFP Media Converter with 1BASE-T and 1 SFP Port

Sorry - this product is no longer available

D-Link DIS-M100G, 2-Port Industrial Base-T to SFP Media Converter with 1BASE-T and 1 SFP Port

Manufacturer: D-LINK
D-Link DIS-M100G, 2-Port Industrial Base-T to SFP Media Converter with 1BASE-T and 1 SFP Port
$616.83
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
  • RJ-45 Ports: 1
  • RJ-45 Speeds: 1Gbps
  • Combo Ports (RJ-45 + SFP): 1BASE-T and 1 SFP Port
  • SFP (Small Form-Factor Pluggable) Ports : 1
  • SFP Speeds: 1G
  • PoE++ (60w) or higher available?: No
  • Number of PoE Ports: 0
  • Extended PoE?: No
  • Capacity in Millions of Packets per Second (mpps): Maximum Forwarding Rate: 2.976
  • Switching Capacity in Gigabits per Second (Gbps): 4
  • Web-based GUI: No
  • Redundant Power Supply: Yes
  • 19" Rack Mountable: No
  • DIN-Rail Mountable: Yes
  • Stacking Capacity (Physical): No
  • Stacking Capacity (Virtual): No
  • IPv4 Routing: No
  • IPv6 Routing: No
  • DHCP (Dynamic Host Configuration Protocol) Server Screening: No
  • Ruggedized: Yes
  • Operating Temperature: -40 to 70 C
  • Unit dimensions: 26.1 x 70 x 95 mm
  • Warranty Licence: Lifetime
Products specifications
Attribute nameAttribute value
Maximum data transfer rate4000 Mbit/s, 4000 Mbit/s, 4000 Mbit/s
Converter input interface100BASE-FX, 100Base-TX, 1000Base-T, 1000Base-X, 100BASE-FX, 100Base-TX, 1000Base-T, 1000Base-X, 100BASE-FX, 100Base-TX, 1000Base-T, 1000Base-X
Networking standardsIEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface typeGigabit Ethernet, Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s, 10,100,1000 Mbit/s, 10,100,1000 Mbit/s
Packet forwarding rate (100 Mbps)2.976 pps, 2.976 pps, 2.976 pps
Auto MDI/MDI-XYes, Yes, Yes
Auto-negotiationYes, Yes, Yes
Duplex systemFull, Half, Full, Half, Full, Half
Fiber mode structureMulti-mode, Single-mode, Multi-mode, Single-mode, Multi-mode, Single-mode
InternalNo, No, No
Plug and PlayYes, Yes, Yes
LED indicatorsLink, Network, Link, Network, Link, Network
Product colourBlack, Black, Black
International Protection (IP) codeIP30, IP30, IP30
Connectivity technologyWired, Wired, Wired
Ethernet LAN (RJ-45) ports1, 1, 1
Fiber ports quantity1, 1, 1
Fiber optic connectorSFP, SFP, SFP
DC-in jackYes, Yes, Yes
Output voltage12 - 48 V, 12 - 48 V, 12 - 48 V
Power consumption (typical)3.6 W, 3.6 W, 3.6 W
Width70 mm, 70 mm, 70 mm
Depth95 mm, 95 mm, 95 mm
Height26.1 mm, 26.1 mm, 26.1 mm
Weight190 g, 190 g, 190 g
Operating temperature (T-T)-40 - 70 °C, -40 - 70 °C, -40 - 70 °C
Storage temperature (T-T)-40 - 85 °C, -40 - 85 °C, -40 - 85 °C
Operating relative humidity (H-H)5 - 95%, 5 - 95%, 5 - 95%
Storage relative humidity (H-H)5 - 95%, 5 - 95%, 5 - 95%
CertificationCE, FCC, CE, FCC, CE, FCC
Harmonized System (HS) code85176990, 85176990, 85176990
