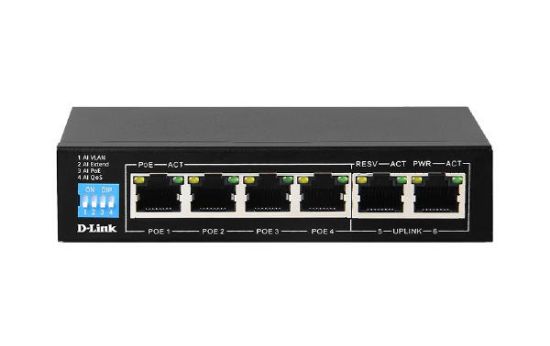

D-Link 6-Port Gigabit PoE Switch with 4 RJ45 PoE and 2 Uplink Ports

Manufacturer: D-Link

Manufacturer part number: DGS-F1006P-E

$182.28

Qty:

The D-Link DGS-F1006P-E 6-Port 10/100/1000 Switch with 4 PoE Ports enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), IP cameras, and IP phones to the network. Built with home and small business users in mind, the DGSF1006P-E is compact and operates silently, making it ideal for most rooms and offices.

RJ-45 Ports: 6
RJ-45 Speeds: 10/100/1000
Combo Ports (RJ-45 + SFP): 4 RJ45 PoE + 2 Uplink Ports
SFP (Small Form-Factor Pluggable) Ports : 0
SFP Speeds: 0
PoE++ (60w) or higher available?: Yes
Number of PoE Ports: 4
Extended PoE?: No
Capacity in Millions of Packets per Second (mpps): 14800pps to 1488000pps
Switching Capacity in Gigabits per Second (Gbps): 12 Gbps
Web-based GUI: No
Redundant Power Supply: No
19" Rack Mountable: Desktop
DIN-Rail Mountable: No
Stacking Capacity (Physical): No
Stacking Capacity (Virtual): No
IPv4 Routing: No
IPv6 Routing: No
DHCP (Dynamic Host Configuration Protocol) Server Screening: No
Ruggedized: No
Operating Temperature: 0 to 40 C
Unit dimensions: 125 x 75 x 27 mm
Warranty Licence: 3 Years

Products specifications

Quality of Service (QoS) support	Yes
Basic switching RJ-45 Ethernet ports quantity	6
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	10
Uplink ports quantity	2
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Active link detection	Yes
Switching capacity	12 Gbit/s
Store-and-forward	Yes
Rack mounting	No
Stackable	No
Product colour	Black
LED indicators	Activity, Link, Power
Power Source	PoE
Power supply included	Yes
Power Consumption (Typical)	60 W
Power Over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Total Power over Ethernet (PoE) budget	60 W
Operating temperature (T-T)	0 - 40 Â°C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Width	75 mm
Depth	27 mm
Height	125 mm
Weight	750 g
Certification	CE, FCC, LVD
