  • D-Link 54-Port Gigabit Managed PoE Switch with 48 PoE, 2 (10G) RJ45 and 4(10G) SFP+ Ports

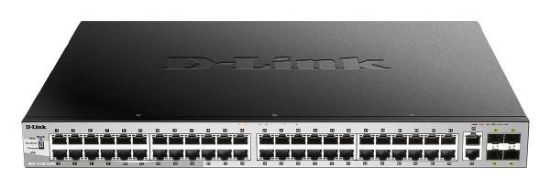

Picture of D-Link 54-Port Gigabit Managed PoE Switch with 48 PoE, 2 (10G) RJ45 and 4(10G) SFP+ Ports

Sorry - this product is no longer available

D-Link 54-Port Gigabit Managed PoE Switch with 48 PoE, 2 (10G) RJ45 and 4(10G) SFP+ Ports

Manufacturer: D-LINK
D-Link 54-Port Gigabit Managed PoE Switch with 48 PoE, 2 (10G) RJ45 and 4(10G) SFP+ Ports
$4,830.60
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
The DGS-3130 Series is a range of Lite Layer 3 Stackable Managed Switches designed to connect end-users in a secure enterprise or metro Ethernet access network. These switches support both multicasting and enhanced security, making them an ideal Gigabit access layer solution. The DGS-3130 Series has models equipped with Gigabit Ethernet, Power over Ethernet (PoE) and SFP network connection options ranging from 24 to 48 ports. PoE models support 802.3af and 802.3at PoE standards with default power budgets of 370 watts and the potential to be expanded to 740 watts with the DPS-700 redundant power supply.
  • RJ-45 Ports: 50
  • RJ-45 Speeds: 10/100/1000
  • Combo Ports (RJ-45 + SFP): 48 PoE + 2 (10G) RJ45 + 4(10G) SFP+ Ports
  • SFP (Small Form-Factor Pluggable) Ports : 4
  • SFP Speeds: 10G
  • PoE++ (60w) or higher available?: Yes
  • Number of PoE Ports: 48
  • Extended PoE?: No
  • Capacity in Millions of Packets per Second (mpps): 125 Mpps
  • Switching Capacity in Gigabits per Second (Gbps): 168 Gbps
  • Web-based GUI: Yes
  • Redundant Power Supply: Yes
  • 19" Rack Mountable: Rack-mount
  • DIN-Rail Mountable: No
  • Stacking Capacity (Physical): Yes
  • Stacking Capacity (Virtual): Yes
  • IPv4 Routing: Yes
  • IPv6 Routing: Yes
  • DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes
  • Ruggedized: No
  • Operating Temperature: 0 to 50 C
  • Unit dimensions: 440 x 350 x 44 mm
  • Warranty Licence: Limited Lifetime Warranty
Products specifications
Attribute nameAttribute value
Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
ARP inspectionYes
System event logYes
MIB supportRFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC 4293; RFC 2737
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP+ module slots quantity4
Fiber optic connectorSFP+
Console portRJ-45
USB 2.0 ports quantity1
Power connectorAC-in jack
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
10G supportYes
Copper ethernet cabling technology10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Port mirroringYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Spanning tree protocolYes
Head-of-line (HOL) blockingYes
VLAN supportYes
Virtual LAN featuresPrivate VLAN, Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN
Number of VLANs4000
Switching capacity216 Gbit/s
Forwarding rate161 Mpps
MAC address table16384 entries
Number of queues8
Jumbo frames supportYes
Packet buffer memory4 MB
DHCP featuresDHCP server, DHCP snooping, DHCP relay, DHCP client
Access Control List (ACL)Yes
Access Control List (ACL) egress512
Access Control List (ACL) ingress2048
IGMP snoopingYes
Security algorithmsSNMP, SNMPv3, SSH-2, SSL/TLS
SSH/SSL supportYes
Loop protectionYes
BPDU filtering/protectionYes
AuthenticationMAC-based authentication, Port-based authentication, Web-based authentication
Root protectionYes
Password protectionYes
DoS attack preventionYes
Queue scheduling algorithmsSP, WRR+SP, Weighted Round Robin (WRR)
Multicast supportYes
Multicast featuresControllable multicast
GARP VLAN Registration Protocol (GVRP)Yes
Virtual Router Redundancy Protocol (VRRP)Yes
Routing protocolsRIP
Rack mountingYes
StackableYes
Product colourBlack, Grey
LED indicatorsYes
Number of fans4 fan(s)
SafetyCB, cUL, BSMI, CCC
Physical stacking (units)9
Virtual stacking (units)32
Noise level54.2 dB
TelnetYes
sFlowYes
Mean time between failures (MTBF)356876 h
Redundant power supply (RPS) supportYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)487.26 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity48
Total Power over Ethernet (PoE) budget370 W
I/O ports2 x 10GBASE-T
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation1662.6 BTU/h
Width440 mm
Depth350 mm
Height44 mm
Weight5.14 kg
Package width450 mm
Package depth595 mm
Package height118 mm
Package weight6.88 kg
Shipping (inner) case height62 cm
Shipping (inner) case width38 cm
Shipping (inner) case length46.5 cm
Shipping (inner) case net weight22.8 kg
Products per shipping (inner) case3 pc(s)
Pallet gross weight (air)297.4 kg
Master (outer) cases per pallet (air)12 pc(s)
Products per pallet (air)36 pc(s)
Pallet gross length110 cm
Pallet gross width120 cm
Pallet height (air)137.5 cm
Pallet gross weight (sea)437.2 kg
Master (outer) cases per pallet (sea)18 pc(s)
Products per pallet (sea)54 pc(s)
Pallet height (sea)199.5 cm
Shipping (inner) case gross weight23.3 kg
CertificationFCC A, CE A, VCCI A, IC, RCM, BSMI, CCC
Harmonized System (HS) code85176990
