Sorry - this product is no longer available

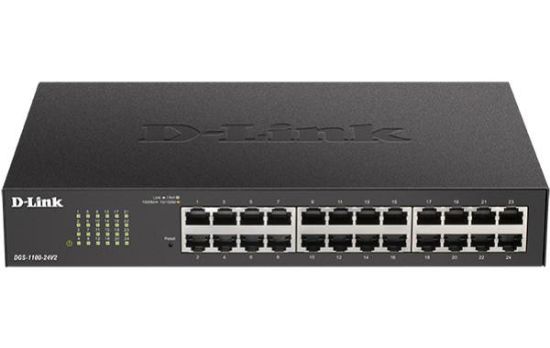

D-Link 24-Port Gigabit Smart Managed Switch with 24 Mbps Ports

Manufacturer: D-LINK
D-Link 24-Port Gigabit Smart Managed Switch with 24 Mbps Ports
$321.64
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
The DGS-1100V2 Series supports surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network. This ensures security and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance hardware. Bandwidth Control can reserve bandwidth on a per-port basis for important functions that require larger bandwidth or have higher priority.
Products specifications
Attribute nameAttribute value
Switch typeManaged
Switch layerL2
Web-based managementYes
System event logYes
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Networking standardsIEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
Port mirroringYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Auto MDI/MDI-XYes
Spanning tree protocolYes
Head-of-line (HOL) blockingYes
VLAN supportYes
Virtual LAN featuresPort-based VLAN, Voice VLAN
Number of VLANs4094
Switching capacity48 Gbit/s
Forwarding rate35.71 Mpps
MAC address table8000 entries
Store-and-forwardYes
Number of queues4
Jumbo frames supportYes
Jumbo frames9216
Packet buffer memory4.1 MB
DHCP featuresDHCP client
IGMP snoopingYes
IGMP entries64
Security algorithmsSNMP, SSL/TLS
Queue scheduling algorithmsSPQ, Weighted Round Robin (WRR)
Multicast supportYes
Rack mountingYes
Form factor1U
Product colourBlack
LED indicatorsYes
Electromagnetic compatibilityFCC A, CE A, VCCI A, C-Tick, BSMI, CCC
Built-in processorYes
Processor frequency125 MHz
Flash memory16 MB
Noise level0 dB
Mean time between failures (MTBF)424762 h
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)4.5 W
Power consumption (max)15.9 W
Power over Ethernet (PoE)No
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 2000 m
Heat dissipation54.3 BTU/h
Width280 mm
Depth180 mm
Height44 mm
Weight1.47 kg
Rack mount kitYes
CertificationRoHS 6 cUL, CE LVD, CB, BSMI, CCC
Harmonized System (HS) code85176990
