  • D-Link 16-Port Gigabit Unmanaged Desktop Switch with 16 Gigabit Ports

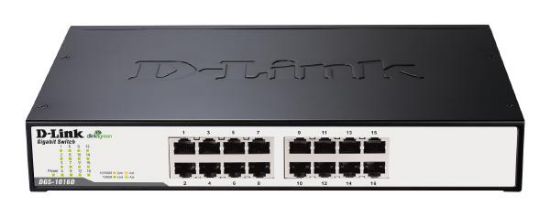

Picture of D-Link 16-Port Gigabit Unmanaged Desktop Switch with 16 Gigabit Ports

Sorry - this product is no longer available

D-Link 16-Port Gigabit Unmanaged Desktop Switch with 16 Gigabit Ports

Manufacturer: D-LINK
D-Link 16-Port Gigabit Unmanaged Desktop Switch with 16 Gigabit Ports
$158.67
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
The D-Link DGS-1016D and the DGS-1024D 24-Port Unmanaged Gigabit Switch series offer an economical way for SOHO and Small-to-Medium Businesses (SMB) to take advantage of Gigabit Ethernet speeds, while reducing energy consumption and minimizing noise output.
  • RJ-45 Ports: 16
  • RJ-45 Speeds: 10/100/1000
  • Combo Ports (RJ-45 + SFP): 16 RJ-45
  • SFP (Small Form-Factor Pluggable) Ports : 0
  • SFP Speeds: 0
  • PoE++ (60w) or higher available?: No
  • Number of PoE Ports: 0
  • Extended PoE?: No
  • Capacity in Millions of Packets per Second (mpps): 14,880 pps per port
  • Switching Capacity in Gigabits per Second (Gbps): 32 Gbps
  • Web-based GUI: No
  • Redundant Power Supply: No
  • 19" Rack Mountable: Desktop or Rackmountable metal housing - Rackmount brackets included
  • DIN-Rail Mountable: No
  • Stacking Capacity (Physical): No
  • Stacking Capacity (Virtual): No
  • IPv4 Routing: No
  • IPv6 Routing: No
  • DHCP (Dynamic Host Configuration Protocol) Server Screening: No
  • Ruggedized: No
  • Operating Temperature: 0 to 40 C
  • Unit dimensions: 280 x 125 x 44 mm
  • Warranty Licence: 3 Years
Products specifications
Attribute nameAttribute value
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Power connectorAC-in jack
Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-T, 1000BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e
Full duplexYes
Flow control supportYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
Active link detectionYes
MAC address auto-learning supportedYes
MAC address auto-aging supportedYes
Switching capacity32 Gbit/s
Forwarding rate23.81 Mpps
MAC address table8000 entries
Store-and-forwardYes
Number of queues8
Jumbo frames supportYes
Jumbo frames10000
Packet forwarding rate (1 Gbps)14880 pps
Packet forwarding rate (100 Mbps)148800 pps
Packet forwarding rate (10 Mbps)1488000 pps
Packet buffer memory0.5 MB
Rack mountingYes
StackableYes
Form factor1U
Product colourBlack, Silver
Housing materialMetal
LED indicatorsActivity, Link, Power, Speed
Electromagnetic compatibilityICES-003 Class A, FCC Class A, RCM Class A, BSMI Class A, CE Class A, VCCI A, CCC, KCC
Noise level0 dB
Mean time between failures (MTBF)1882372 h
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current0.2 A
Power consumption (max)10.07 W
Power over Ethernet (PoE)No
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Heat dissipation34.3 BTU/h
Width280 mm
Depth125 mm
Height44 mm
Weight1.02 kg
CertificationcUL/UL CE LVD CCC CB BSMI
