  • D-Link 10-Port 10 Gigabit Smart Managed Switch with 8 10GBase-T Ports and 2 SFP+ ports

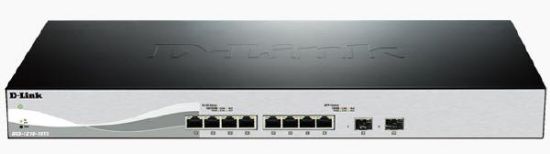

Picture of D-Link 10-Port 10 Gigabit Smart Managed Switch with 8 10GBase-T Ports and 2 SFP+ ports

Sorry - this product is no longer available

D-Link 10-Port 10 Gigabit Smart Managed Switch with 8 10GBase-T Ports and 2 SFP+ ports

Manufacturer: D-LINK
D-Link 10-Port 10 Gigabit Smart Managed Switch with 8 10GBase-T Ports and 2 SFP+ ports
$1,931.30
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
  • Energy Saving
  • Extensive Management and Layer 2 Features
  • QoS, Bandwidth Control
  • Secure your Network
  • Versatile Management
  • Limited Lifetime Warranty
Products specifications
Attribute nameAttribute value
Switch typeManaged, Managed, Managed
Switch layerL2/L3, L2/L3, L2/L3
Quality of Service (QoS) supportYes, Yes, Yes
Web-based managementYes, Yes, Yes
ARP inspectionYes, Yes, Yes
MIB supportY, Y, Y
Basic switching RJ-45 Ethernet ports quantity8, 8, 8
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000), 10G Ethernet (100/1000/10000), 10G Ethernet (100/1000/10000)
SFP+ module slots quantity2, 2, 2
Fiber optic connectorSFP+, SFP+, SFP+
Console portRJ-45, RJ-45, RJ-45
Networking standardsIEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z
10G supportYes, Yes, Yes
Cable types supportedCat6, Cat6, Cat6
Port mirroringYes, Yes, Yes
Flow control supportYes, Yes, Yes
Link aggregationYes, Yes, Yes
Broadcast storm controlYes, Yes, Yes
Auto MDI/MDI-XYes, Yes, Yes
Spanning tree protocolYes, Yes, Yes
Head-of-line (HOL) blockingYes, Yes, Yes
Ethernet LAN data rates100,1000,2500,5000,10000 Mbit/s, 100,1000,2500,5000,10000 Mbit/s, 100,1000,2500,5000,10000 Mbit/s
VLAN supportYes, Yes, Yes
Number of VLANs4094, 4094, 4094
Switching capacity200 Gbit/s, 200 Gbit/s, 200 Gbit/s
Forwarding rate148.8 Mpps, 148.8 Mpps, 148.8 Mpps
MAC address table32000 entries, 32000 entries, 32000 entries
Store-and-forwardYes, Yes, Yes
Number of queues8, 8, 8
Jumbo frames supportYes, Yes, Yes
Jumbo frames10000, 10000, 10000
DHCP featuresDHCP server, DHCP client, DHCP server, DHCP client, DHCP server, DHCP client
Access Control List (ACL)Yes, Yes, Yes
IGMP snoopingYes, Yes, Yes
Loop protectionYes, Yes, Yes
Password protectionYes, Yes, Yes
Multicast supportYes, Yes, Yes
Rack mountingYes, Yes, Yes
StackableYes, Yes, Yes
Form factor1U, 1U, 1U
Product colourBlack, Silver, Black, Silver, Black, Silver
LED indicatorsYes, Yes, Yes
Number of fans1 fan(s), 1 fan(s), 1 fan(s)
Noise level46.6 dB, 46.6 dB, 46.6 dB
Power sourceAC, AC, AC
AC input voltage100 - 240 V, 100 - 240 V, 100 - 240 V
AC input frequency50/60 Hz, 50/60 Hz, 50/60 Hz
Power consumption (max)43.26 W, 43.26 W, 43.26 W
Power over Ethernet (PoE)No, No, No
Operating temperature (T-T)-5 - 50 °C, -5 - 50 °C, -5 - 50 °C
Storage temperature (T-T)-40 - 70 °C, -40 - 70 °C, -40 - 70 °C
Operating relative humidity (H-H)0 - 95%, 0 - 95%, 0 - 95%
Storage relative humidity (H-H)0 - 95%, 0 - 95%, 0 - 95%
Width330 mm, 330 mm, 330 mm
Depth200 mm, 200 mm, 200 mm
Height44 mm, 44 mm, 44 mm
Weight2.17 kg, 2.17 kg, 2.17 kg
Quick start guideYes, Yes, Yes
CertificationCE, FCC, RCM, VCCI, IC, BSMI, cUL, BSMI, CB, CE, FCC, RCM, VCCI, IC, BSMI, cUL, BSMI, CB, CE, FCC, RCM, VCCI, IC, BSMI, cUL, BSMI, CB
