Aten Rackmount Single Rail LCD Console VGA,HDMI,DVI & VGA w/ 17.3' LCD Display, 1x Custom KVM Cable Included, 1920x1080@60hz Display, LED Illumination

Aten Rackmount Single Rail LCD Console VGA,HDMI,DVI & VGA w/ 17.3' LCD Display, 1x Custom KVM Cable Included, 1920x1080@60hz Display, LED Illumination
Manufacturer: Aten
Availability: 4 in stock
Old price: $2,282.67
$1,843.70
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

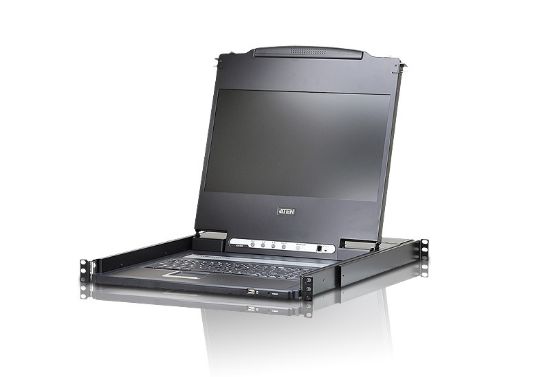

The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3’’ LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW’s console provides front end access to compatible KVM switches utilizing space with a module that closes fl at and slides into the rack. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-defi nition monitor to the console port, and/or an HDMI compatible switch to the KVM port.

Products specifications

Attribute nameAttribute value
Number of computers controlled1
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDVI-D/HDMI/VGA
HDMI ports quantity2
DVI-D ports quantity2
VGA (D-Sub) ports quantity2
USB 2.0 Type-B ports quantity1
Console ports3.5mm headphone, DVI-I, USB A, VGA (D-Sub)
USB connector typeUSB Type-A, USB Type-B
HD typeFull HD
Maximum resolution1920 x 1080 pixels
Video bandwidth60 Hz
DDC2B supportYes
Hot-Plug supportYes
Rack mountingYes
Rack capacity1U
Product colourBlack
Housing materialMetal
LED indicatorsYes
Built-in displayYes
DisplayLCD
Display diagonal43.9 cm (17.3")
Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current1 A
Power consumption (typical)19.4 W
Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Width589.2 mm
Depth480 mm
Height44 mm
Weight11.6 kg
Package width668 mm
Package depth718 mm
Package height135 mm
Package weight14.7 kg
ManualYes
