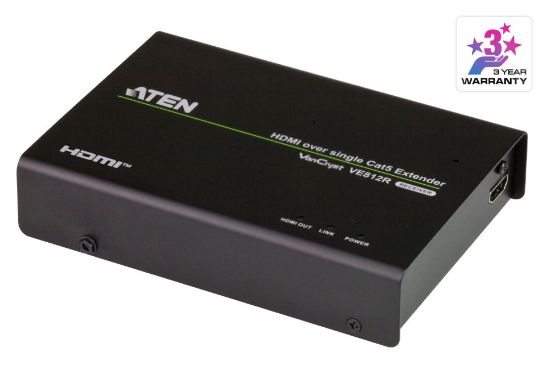

Aten HDMI HDBaseT Receiver, supports up to 4096 x 2160 @ 30 Hz (4:4:4) @ 70m (Cat 5e/6) and 100m (Cat 6A)

Aten HDMI HDBaseT Receiver, supports up to 4096 x 2160 @ 30 Hz (4:4:4) @ 70m (Cat 5e/6) and 100m (Cat 6A)(LS) Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver HDMI (3D, Deep Color, 4k); HDCP Compatible Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology Long distance transmission - up to 100m Selects the optimum EDID settings for smooth power-up and highest quality display Supports up to 340MHz bandwidth for high performance video Supports Dolby True HD and DTS HD Master Audio Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV) Video Output Interfaces 1 x HDMI Type A Female (Black) Impedance 100 Ώ Max. Distance 3 m (2L-7D03H) Video Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane) Max. Pixel Clock Up to 340 MHz Compliance HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) Audio Output 1 x HDMI Type A Female (Black) Connectors Power 1 x DC Jack Power Consumption DC5.3V:5.06W:24BTU Environmental Operating Temperature 0 - 50°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal Weight 0.41 kg ( 0.9 lb ) Dimensions (L x W x H) 14.17 x 10.30 x 3.00 cm (5.58 x 4.06 x 1.18 in.) Carton Lot 5 pcs Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
