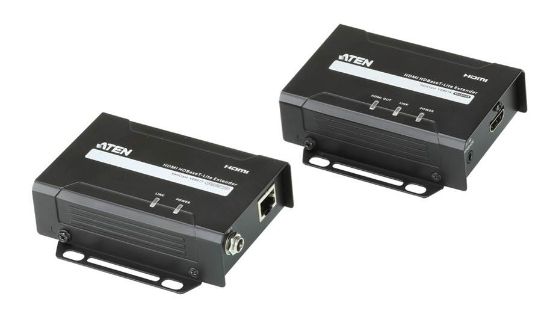

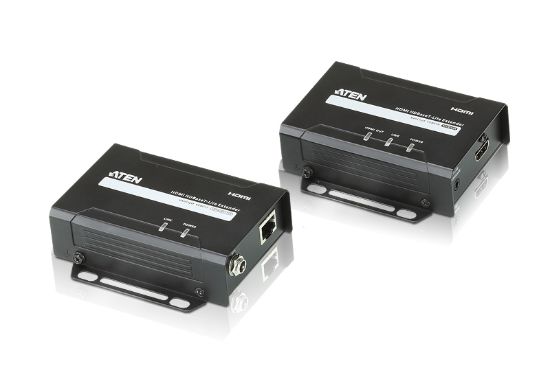

Picture of Aten HDMI HDBaseT-Lite Extender, supports 1080p @ 70m and 4096 x 2160 @ 30 HZ (4:4:4) @ 40m over Cat 6A

Aten HDMI HDBaseT-Lite Extender, supports 1080p @ 70m and 4096 x 2160 @ 30 HZ (4:4:4) @ 40m over Cat 6A

Manufacturer: Aten

Availability: 4 in stock

$361.69

Qty:

The VE801 HDMI HDBaseT-Lite Extender extends an HDMI signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.
1x VE801T/R HDMI HDBaseT-Lite Extender
2x 0AD6-1F05-26EG Power Adapters
1x User Instructions

Products specifications

Attribute name	Attribute value
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat5, Cat6, Cat6a
Maximum transfer distance	70 m
LED indicators	Yes
Supported video modes	1080p
Bandwidth	340 MHz
HDCP	Yes
Material	Metal
Product colour	Black
Connectivity technology	Wired
Ethernet LAN	Yes
RJ-45 input ports	1
RJ-45 output ports	1
HDMI in	1
Number of HDMI outputs	1
DC-in jack	Yes
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Receiver dimensions (WxDxH)	34.3 x 98.6 x 30 mm
Receiver weight	250 g
Transmitter dimensions (WxDxH)	34.3 x 98.6 x 30 mm
Transmitter weight	240 g
Quantity per pack	2 pc(s)
AC adapter included	Yes
Compliance certificates	RoHS
