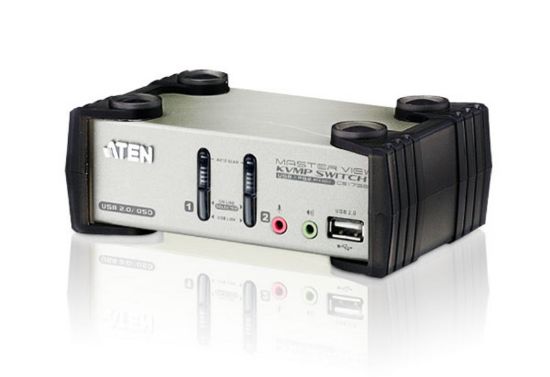

Picture of Aten Desktop KVMP Switch 2 Port Single Display VGA w/ audio & OSD, 2x Custom KVM Cables Included, 2x USB Port, Selection Via Front Panel

Aten Desktop KVMP Switch 2 Port Single Display VGA w/ audio & OSD, 2x Custom KVM Cables Included, 2x USB Port, Selection Via Front Panel

Manufacturer: Aten

Availability: 2 in stock

Old price: $202.67

Price: $179.28

Qty:

The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
1 x CS1732B 2-Port USB 2.0 KVMP™ Switch
2 x 2L-5301U USB KVM Cables (1.2m)
1 x LIN5-04A2-J13G Firmware Upgrade Cable
1 x 0AD8-1605-24M1 Power Adapter
2 x OSD/Hotkey Stickers
1 x User Instructions

Products specifications

Attribute name	Attribute value
Number of computers controlled	2
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Console ports	3.5mm headphone, 3.5mm mic
USB hub	Yes
USB 2.0 Type-A hub ports quantity	2
Audio connections	Yes
Headphone outputs	4
Number of microphone inputs	4
DC-in jack	Yes
HD type	QXGA
Maximum resolution	2048 x 1536 pixels
Video bandwidth	60 Hz
Scan interval	1,255 s
DDC2B support	Yes
Firmware upgradeable	Yes
Product colour	Black, Metallic
Housing material	Metal
Cable length	1.2 m
LED indicators	Yes
Push button	Yes
Hot keys	Yes
On Screen Display (OSD)	Yes
Power source	DC
Input voltage	5.3 V
Power consumption (typical)	2.5 W
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	140 mm
Depth	88 mm
Height	55.5 mm
Weight	1.15 kg
Package width	62 mm
Package depth	283 mm
Package height	173 mm
Package weight	1.34 kg
Cables included	KVM
Quick installation guide	Yes
Manual	Yes
