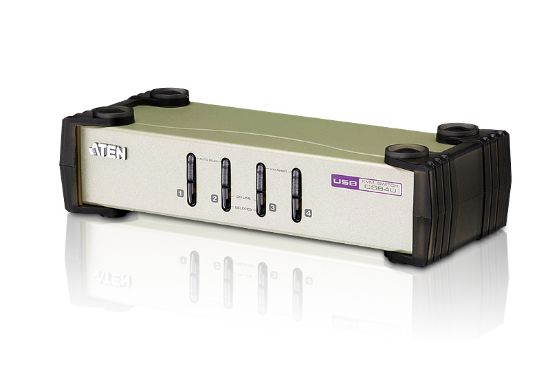

Picture of Aten Desktop KVM Switch 4 Port Single Display VGA, 4x Custom KVM Cables Included, Selection Via Front Panel, Auto Scan Mode,

Aten Desktop KVM Switch 4 Port Single Display VGA, 4x Custom KVM Cables Included, Selection Via Front Panel, Auto Scan Mode,

Manufacturer: Aten

Availability: 2 in stock

Old price: $194.87

Price: $172.38

Qty:

The CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS84U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.
1x CS84U PS/2-USB KVM Switch
2x 2L-5301UP PS/2-USB KVM Cables
2x 2L-5302UP PS/2-USB KVM Cables
1x User Instructions

Products specifications

Attribute name	Attribute value
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
VGA (D-Sub) ports quantity	4
Console ports	USB A, VGA (D-Sub)
USB 2.0 Type-A hub ports quantity	2
USB connector type	USB Type-A
DC-in jack	Yes
HD type	QXGA
Maximum resolution	2048 x 1536 pixels
Video bandwidth	60 Hz
Scan interval	3,5,10,20 s
DDC2B support	Yes
Rack mounting	No
Product colour	Black, Grey
Housing material	Metal
LED indicators	Yes
Push button	Yes
Hot keys	Yes
Built-in display	No
Power source	DC
Input voltage	5 V
Power consumption (typical)	0.45 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Width	210 mm
Depth	88 mm
Height	55.5 mm
Weight	1.51 kg
Package width	100 mm
Package depth	283 mm
Package height	173 mm
Package weight	1.69 kg
Quick installation guide	Yes
Manual	Yes
Master (outer) case net weight	7.57 kg
Harmonized System (HS) code	85176200
Master (outer) case width	292 mm
Master (outer) case length	517 mm
Master (outer) case height	194 mm
Master (outer) case gross weight	8.98 kg
Products per master (outer) case	5 pc(s)
