  • Aten Compact KVM Switch 2 Port Single Display Display Port w/ Audio, Remote Port Selector, USB Hot-Plugging

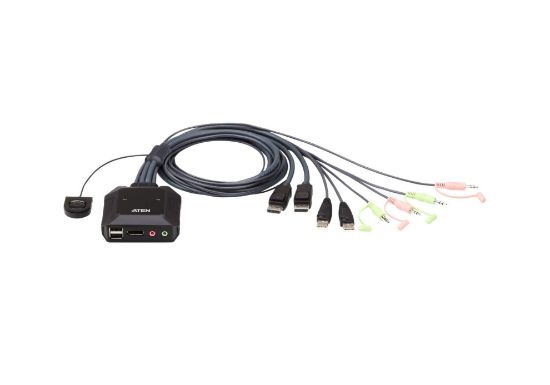

Picture of Aten Compact KVM Switch 2 Port Single Display Display Port w/ Audio, Remote Port Selector, USB Hot-Plugging

Aten Compact KVM Switch 2 Port Single Display Display Port w/ Audio, Remote Port Selector, USB Hot-Plugging

Manufacturer: Aten
Availability: 6 in stock
Aten Compact KVM Switch 2 Port Single Display Display Port w/ Audio, Remote Port Selector, USB Hot-Plugging
Old price: $104.64
$118.29
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
The CS22DP 2-Port USB DisplayPort Cable KVM Switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio. With the CS22DP, you can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton.
1x CS22DP 2-Port USB DisplayPort Cable KVM Switch
1x User Instructions
Products specifications
Attribute nameAttribute value
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity1
DisplayPort version1.1
Console ports3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity2
USB 2.0 ports quantity2
USB connector typeMicro-USB B, USB Type-A
Audio connectionsYes
Headphone outputs1
Number of microphone inputs1
Ethernet LANNo
HD type4K Ultra HD
Maximum resolution4096 x 2160 pixels
Video bandwidth30 Hz
HDCPYes
Hot-Plug supportYes
Rack mountingNo
Product colourBlack
Housing materialPlastic
Wired remote switchYes
Cable length1.2 m
Remote switch cable length1.8 m
LED indicatorsYes
Built-in displayNo
Power sourceDC
Input voltage5 V
Power consumption (typical)1.38 W
USB poweredYes
Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes
Sustainability certificatesRoHS
Compliance certificatesRoHS
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Width84.2 mm
Depth83.4 mm
Height30.4 mm
Weight360 g
Package width55 mm
Package depth155 mm
Package height225 mm
Package weight435 g
ManualYes
Master (outer) case net weight7.2 kg
Harmonized System (HS) code85176200
Master (outer) case width328 mm
Master (outer) case length389 mm
Master (outer) case height330 mm
Master (outer) case gross weight9.33 kg
Products per master (outer) case20 pc(s)
