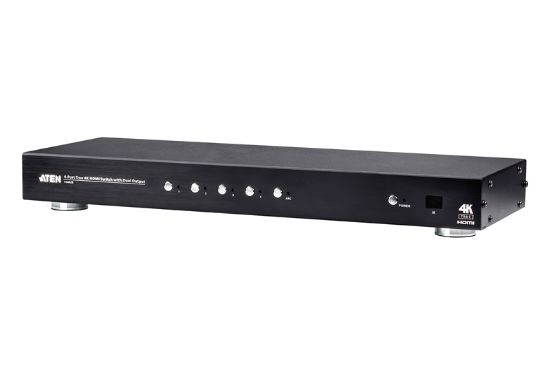

Picture of Aten 4 Port Dual Output True 4K HDMI Switch, select input ports via RS232 control, HDCP 2.2 compliant, IR Extension

Aten 4 Port Dual Output True 4K HDMI Switch, select input ports via RS232 control, HDCP 2.2 compliant, IR Extension

Manufacturer: Aten

Availability: 2 in stock

$534.49

Qty:

The ATEN VS482B Switch is an ideal solution for application requiring superior video resolution of True 4K when connecting 4 HDMI A/V sources to 2 HDMI displays. Complying with HDMI 2.0 standards, the switch's Audio Return Channel (ARC) function allows users to send audio without having to attach a separate audio cable.
1x VS482B 4-Port True 4K HDMI Switch with Dual Output
1x 0AD8-1005-26M1 Power Adapter
1x 2XRT-0010G IR Remote Control Unit
1x Mounting Kit
1x User Instructions

Products specifications

Attribute name	Attribute value
Video port type	HDMI
HDMI ports quantity	6
HDMI version	2.0
HDMI in	4
Number of HDMI outputs	2
RS-232 ports	1
DC-in jack	Yes
Material	Metal
Product colour	Black
Consumer Electronics Control (CEC) support	Yes
HDCP	Yes
Maximum refresh rate	60 Hz
Maximum operating distance	3 m
Supported graphics resolutions	3840 x 2160, 4096 x 2160
Bandwidth	600 MHz
LED indicators	Yes
Maximum resolution	4096 x 2160 pixels
3D	Yes
HD type	4K Ultra HD
Input impedance	100 Ω
Output impedance	100 Ω
HDCP version	2.2
Power consumption (typical)	3.29 W
Width	158.8 mm
Depth	437.2 mm
Height	44 mm
Weight	2.16 kg
Package width	116 mm
Package depth	540 mm
Package height	233 mm
Package weight	2.84 kg
Mounting kit	Yes
AC adapter included	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Compliance certificates	RoHS
Harmonized System (HS) code	85176990
Master (outer) case width	375 mm
Master (outer) case length	565 mm
Master (outer) case height	258 mm
Master (outer) case gross weight	9.27 kg
Products per master (outer) case	3 pc(s)
Master (outer) case net weight	6.48 kg
