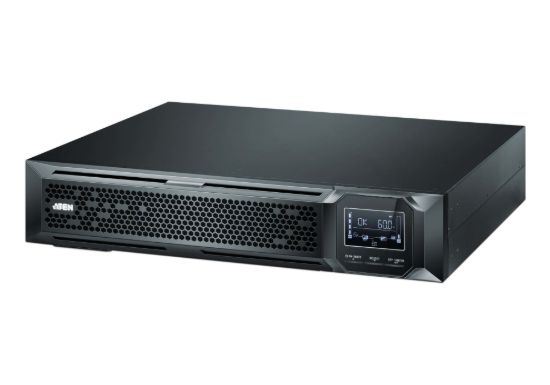

Picture of Aten 2000VA/2000W Professional Online UPS with USB/DB9 connection, 8 IEC C13 outlets, optional SNMP support, EPO and RJ port surge protection

Aten 2000VA/2000W Professional Online UPS with USB/DB9 connection, 8 IEC C13 outlets, optional SNMP support, EPO and RJ port surge protection

Manufacturer: Aten
Availability: 4 in stock
Aten 2000VA/2000W Professional Online UPS with USB/DB9 connection, 8 IEC C13 outlets, optional SNMP support, EPO and RJ port surge protection
$1,787.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
The ATEN Professional Online UPS is an exceptional and innovative electrical apparatus that provides emergency power to a load when the input power source, or the mains, fails. The basic technology of an online UPS is the same as in a standby or line-interactive UPS, however, the ATEN Professional Online UPS provides a much greater current of AC-to-DC battery-charger/rectifier where the rectifier and inverter are designed to run continuously with improved cooling systems.
1x Online UPS
1x Rack Mounting Kit
1x Rail Slide Kit
1x RS-232 Cable
1x USB Type A to B Cable
4x Power Cables
1x Tower Stand set
1x User Instructions
Products specifications
Attribute nameAttribute value
UPS topologyDouble-conversion (Online)
Output power capacity2 kVA
Output power2000 W
WaveformSine
Input operation voltage (min)110 V
Input operation voltage (max)300 V
Input frequency40/70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Response time4 ms
Efficiency89%
Efficiency (ECO mode)96%
Crest factor3:1
ECO modeYes
Noise level50 dB
AC outlet typesC13 coupler
Power plugC13 coupler
AC outlets quantity8 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
USB port typeUSB Type-B
Serial interfaceYes
Serial interface typeRS-232
Serial ports quantity1
RS-232 ports1
Ethernet LAN (RJ-45) ports2
Battery technologySealed Lead Acid (VRLA)
Battery capacity9 Ah
Battery voltage12 V
Number of battery cells4
Typical backup time at full load2.95 min
Typical backup time at half load10 min
Battery recharge time3 h
Charging current2 A
Cold startYes
Form factorRackmount/Tower
Rack capacity2U
Cooling typeActive
Built-in fanYes
Product colourBlack
LED indicatorsYes
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)20 - 90%
Storage relative humidity (H-H)10 - 95%
CertificationCE RoHS
Cables includedOutput power cable, Power load cable, RS-232, USB cable
ManualYes
Width88 mm
Depth438 mm
Height510 mm
Weight19.9 kg
Package width88 mm
Package depth438 mm
Package height510 mm
Package weight25.9 kg
Master (outer) case net weight19.9 kg
Harmonized System (HS) code85078000
Master (outer) case width240 mm
Master (outer) case length565 mm
Master (outer) case height700 mm
Master (outer) case gross weight25.9 kg
Products per master (outer) case1 pc(s)
