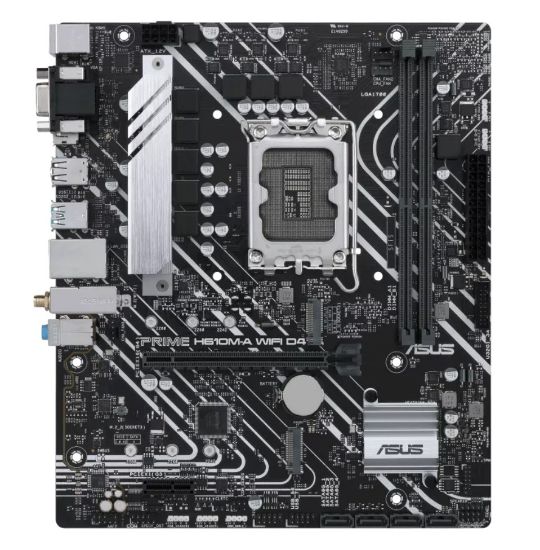

ASUS H610M-A WIFI D4-CSM PRIME Intel LGA 1700 mATX Motherboard, DDR4 64GB, PCIe4.0, M.2, 1Gb Ethernet, HDMI, D-SUB, USB3.2 Gen2, SATA 6Gbps,

ASUS H610M-A WIFI D4-CSM PRIME mATX, LGA1700, Intel H610, 2xDDR4 64GB, PCIe 4.0 x16, 2xM.2, 4xSATA, Wi-Fi 5, 1GbE
Manufacturer: ASUS
Availability: 4 in stock
Old price: $200.07
$158.58
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th, 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

Products specifications

Attribute nameAttribute value
Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold
Supported processor socketsLGA 1700
Supported memory typesDDR5-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,2800,2933,3000,3200 MHz
Maximum internal memory64 GB
Unbuffered memoryYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported4
Number of storage drives supported6
Parallel processing technology supportNot supported
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2x2 connectors1
Number of SATA III connectors4
S/PDIF out connectorYes
Audio connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors1
Number of chassis fan connectors2
EPS power connector (8-pin)Yes
Number of COM connectors1
TPM connectorYes
12V power connectorYes
RGB LED pin headerYes
USB 2.0 ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DisplayPorts quantity1
Microphone inYes
WiFi-AP antenna jack1
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standardsWi-Fi 5 (802.11ac)
BluetoothYes
Bluetooth version5.0
Motherboard chipsetIntel H610
Audio output channels7.1 channels
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Windows operating systems supportedWindows 10 x64, Windows 11 x64
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots2
1st M.2 largest key size2280
1st M.2 highest PCI Express generation3.0
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation3.0
BIOS typeUEFI AMI
BIOS memory size128 Mbit
Width244 mm
Depth211 mm
Cables includedSATA
Antenna includedYes
Screws includedYes
