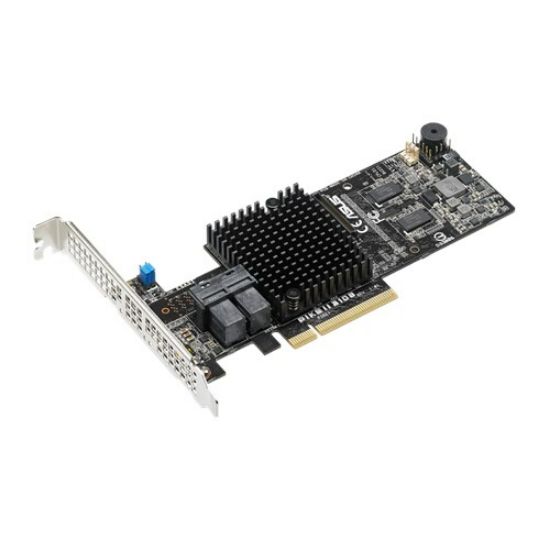

ASUS Cache Vault Accessory Kit FOR PIKE II 1G

SAS 12Gb/s Storage Solution with 8 Internal Ports

ASUS PIKE II 3108-8i/16PD (Max. Physical Disk Qty for RAID: 16) is the latest 12Gb/s SAS and PCI-E 3.0 high reliability enterprise storage solution. It meets user needs with support for 6Gb/s SATA and 12Gb/s SAS storage and integrated RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6 and RAID 60 data protection. Just placing the PIKE card can immediately enlarge the capacity and improve the performance, making it the great upgrade option.

SAS 12Gb/s Storage Solution with 8 Internal Ports
ASUS PIKE II 3108-8i/16PD (Max. Physical Disk Qty for RAID: 16) is the latest 12Gb/s SAS and PCI-E 3.0 high reliability enterprise storage solution. It meets user needs with support for 6Gb/s SATA and 12Gb/s SAS storage and integrated RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6 and RAID 60 data protection. Just placing the PIKE card can immediately enlarge the capacity and improve the performance, making it the great upgrade option.

Storage solution with eight ports of internal 12Gb/s SAS connectivity

PCI-E x8 interface
Internal mini-SAS HD connectors
Switch (for more than one card)
HBLED1(HEARTBEAT LED): The LED shows the firmware heartbeat information.(blinking)
DRLED1(Dirty cache LED): Write Pending(light)
FAILLED1(Global Drive Fault LED): Drive Fault Detected(light)
CacheVault connector

Package Content
ASUS PIKE II 3108-8i/16PD SAS RAID card
Support DVD

System Requirement
ASUS Server motherboard
PCI-E Gen3 slot
SAS or SATA hard disk drives
Mini-SAS HD cable
Supporting Windows® and Linux Operating systems
Appropriate thermal solution
Certified power supply module
Ensure to update BIOS to the latest version before using PIKE II 3108 series on ASUS Z9 or P9 series platform
