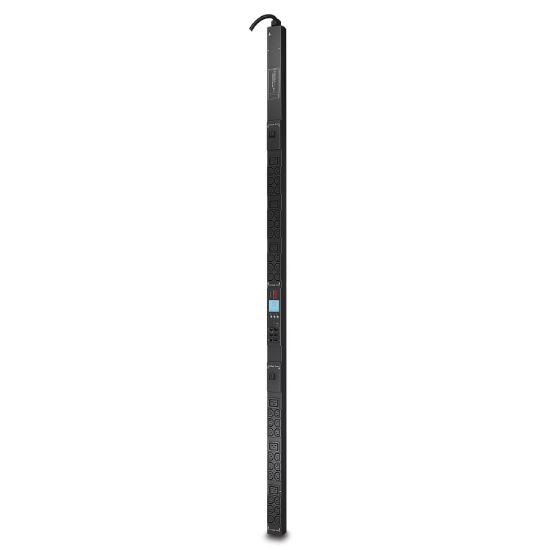

Picture of APC Netshelter Metered Rack PDU, 0U, 230V/32A Input, 6x IEC C19 & 36x IEC C13 Outlets

APC Netshelter Metered Rack PDU, 0U, 230V/32A Input, 6x IEC C19 & 36x IEC C13 Outlets

Manufacturer: APC
Availability: 4 in stock
APC Netshelter Metered Rack PDU, 0U, 230V/32A Input, 6x IEC C19 & 36x IEC C13 Outlets
Old price: $1,256.33
$1,256.32
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (36) C13 & (6) C19, and the cable length is 3m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Products specifications
Attribute nameAttribute value
PDU typesMetered
TypeSingle-phase
Rack capacity0U
MountingVertical
Product colourBlack
AC outlets quantity42 AC outlet(s)
Power plugIEC309
AC outlet typesC13 coupler, C19 coupler
Input connection typeIEC 309 32A 2P+E
Output connections36x IEC 320 C13 6x IEC 320 C19
Cable length3 m
MonitoringCurrent, Power, Voltage
AC input frequency50 - 60 Hz
Nominal output voltage230 V
Load capacity7680 VA
Maximum input current per phase32 A
Maximum total current draw per phase32 A
Maximum power7680 W
CertificationRoHS, REACH IEC 60950,VDE
Operating temperature (T-T)5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Width56 mm
Depth44 mm
Height1791 mm
Weight6.93 kg
Total carbon footprint (kg of CO2e)28921.23
