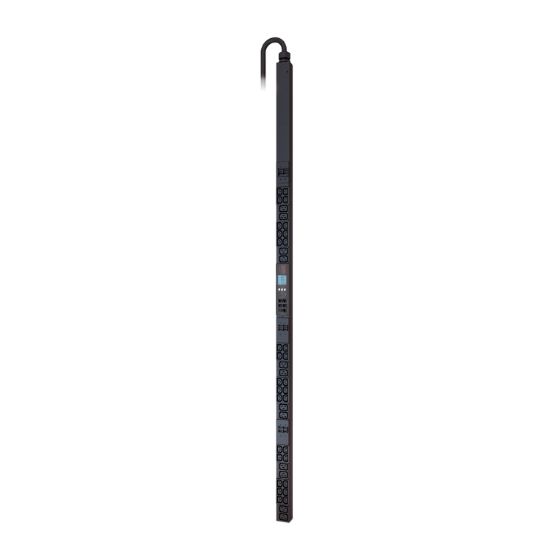

Picture of APC Netshelter Metered Rack PDU, 0U, 230V/24A Input, 12x IEC C19 & 30x IEC C13 Outlets
Picture of APC Netshelter Metered Rack PDU, 0U, 230V/24A Input, 12x IEC C19 & 30x IEC C13 Outlets
Picture of APC Netshelter Metered Rack PDU, 0U, 230V/24A Input, 12x IEC C19 & 30x IEC C13 Outlets
Picture of APC Netshelter Metered Rack PDU, 0U, 230V/24A Input, 12x IEC C19 & 30x IEC C13 Outlets
Picture of APC Netshelter Metered Rack PDU, 0U, 230V/24A Input, 12x IEC C19 & 30x IEC C13 Outlets

APC Netshelter Metered Rack PDU, 0U, 230V/24A Input, 12x IEC C19 & 30x IEC C13 Outlets

APC Netshelter Metered Rack PDU, 0U, 230V/24A Input, 12x IEC C19 & 30x IEC C13 Outlets
Manufacturer: APC
Availability: 10 in stock
Old price: $3,290.70
$3,273.90
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (30) C13 & (12) C19, and the cable length is 1.83m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Products specifications

Attribute nameAttribute value
PDU typesMetered
Rack capacity0U
MountingVertical
Product colourBlack
AC outlets quantity42 AC outlet(s)
Power plugIEC309
AC outlet typesC13 coupler, C19 coupler
Output connections30 x IEC 320 C13 12 x IEC 320 C19
LED indicatorsYes
Cable length1.83 m
MonitoringCurrent, Power, Voltage
Nominal input voltage400 V
AC input frequency50 - 60 Hz
Maximum current32 A
Nominal output voltage230 V
Load capacity22080 VA
Maximum input current per phase32 A
Power protection featuresOverload
Maximum power22000 W
Compliance certificatesRoHS
CertificationEN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs
Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Width56 mm
Depth51 mm
Height1829 mm
Weight8.72 kg
Package weight11.6 kg
Package width170 mm
Package depth112 mm
Package height2050 mm
Total carbon footprint (kg of CO2e)57837.86
Power protection featuresOverload
