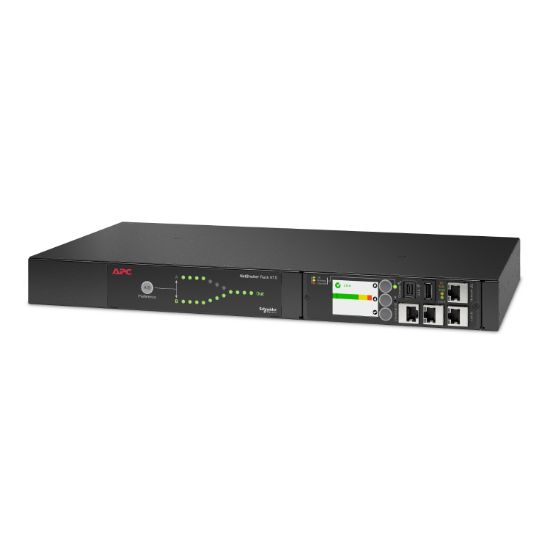

APC Netshelter Automatic Transfer Switch, 1U RM, 2x 230V/10A Input, 12x IEC C13 Output

APC Netshelter Rack Automatic Transfer Switch, 1U, 10A, 230V, C14 IN, 12 C13 OUT, 50/60Hz APC NetShelter Rack Automatic Transfer Switch (ATS) AP4421A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4421A is single phase 1U Rack ATS with 10A rated current, 230V rated voltage and 2000VA load capacity. It comes with 2 IEC C14 inlet and 12 IEC C13 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. Main Input Voltage 230 V AC 1 phase Product or component type Automatic transfer switch Main Output Voltage 230 V AC 1 phase Input Connection Type IEC 60320 C14 10 A 2P + E Number of rack unit 1U Provided equipment- Mounting hardware, Rack mounting brackets Network frequency 50/60 Hz [In] rated current 10 A Permissible voltage 207…253 V Max line current 10 A Load capacity 2000 VA Number of power socket outlets 12 IEC 60320 C13 10 A 2P + E Number of power socket outlets 12 Protection type Without circuit breaker Product certifications EN 55022 class A FCC part 15 class A Standards EN 55022 class A, FCC part 15 class A Ambient air temperature for operation -5…45 °C Relative humidity 5…95 % Operating altitude 0...10000 ft Ambient air temperature for storage -25…65 °C Storage Relative Humidity 5…95 % Storage altitude 0…15240 m Mounting mode- Rack mounted Compatible Sensors- AP9335T, AP9335TH Compatible Mounting- AP7768, AP7769
