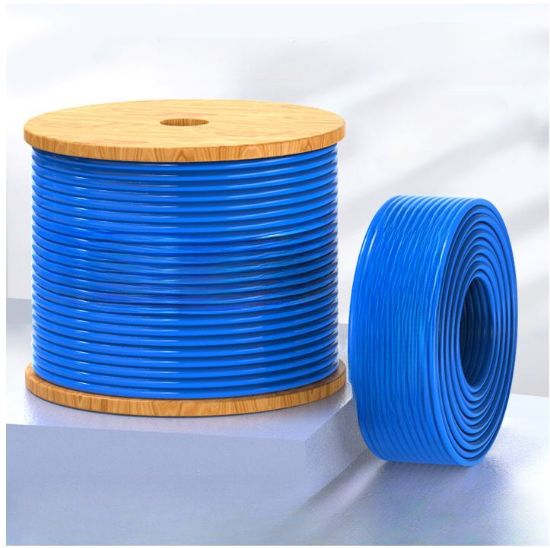

8Ware 350m CAT6A Ethernet 24AWG 30V LAN Stranded Core Cable Roll Bare Copper Twisted Core PVC Jacket on Reel Box Blue >305m

8Ware 350m CAT6A Ethernet 24AWG 30V LAN Cable Bare Copper Twisted Core PVC Jacket Reel Box Blue >305m Conductor Construction(mm) 1/0.508±0.005 Material Bare Copper Cabling OD (mm) 0.508 Insulation Material HDPE OD(mm) 0.90±0.05 Avg. Thickness (mm) 0.18 Color 1、2、3、4 Cores Twisted Yes Drain Construction(mm) ----- Material ----- Al Constructive Side ----- Overlap Rate ----- Mylar Overlap Rate ----- Assemble Cabling OD (mm) 5.00 (Ref.) + Filler Mylar Overlap Rate ----- Al Constructive Side ----- Drain Construction(mm) ----- Material ----- Braid Construction(mm) ----- Material ----- Coverage ----- Jacket Material PVC (Bright) OD(mm) 6.20±0.20 Avg. Thickness (mm) 0.6 Color BLUE (PVC001-6027)PT287C Jet Print Color BLACK Electrical Characters: 1. Voltage Rating: 30V Temperature Rating: 60℃ 2. Dielectric Strength: AC-500V/MIN 3. Insulation resistance: 100M (OHMS * KM MIN at 20℃） Physical Characters: Test Object Jacket AWG 24
